Z-Bridge Bring-to-Work system

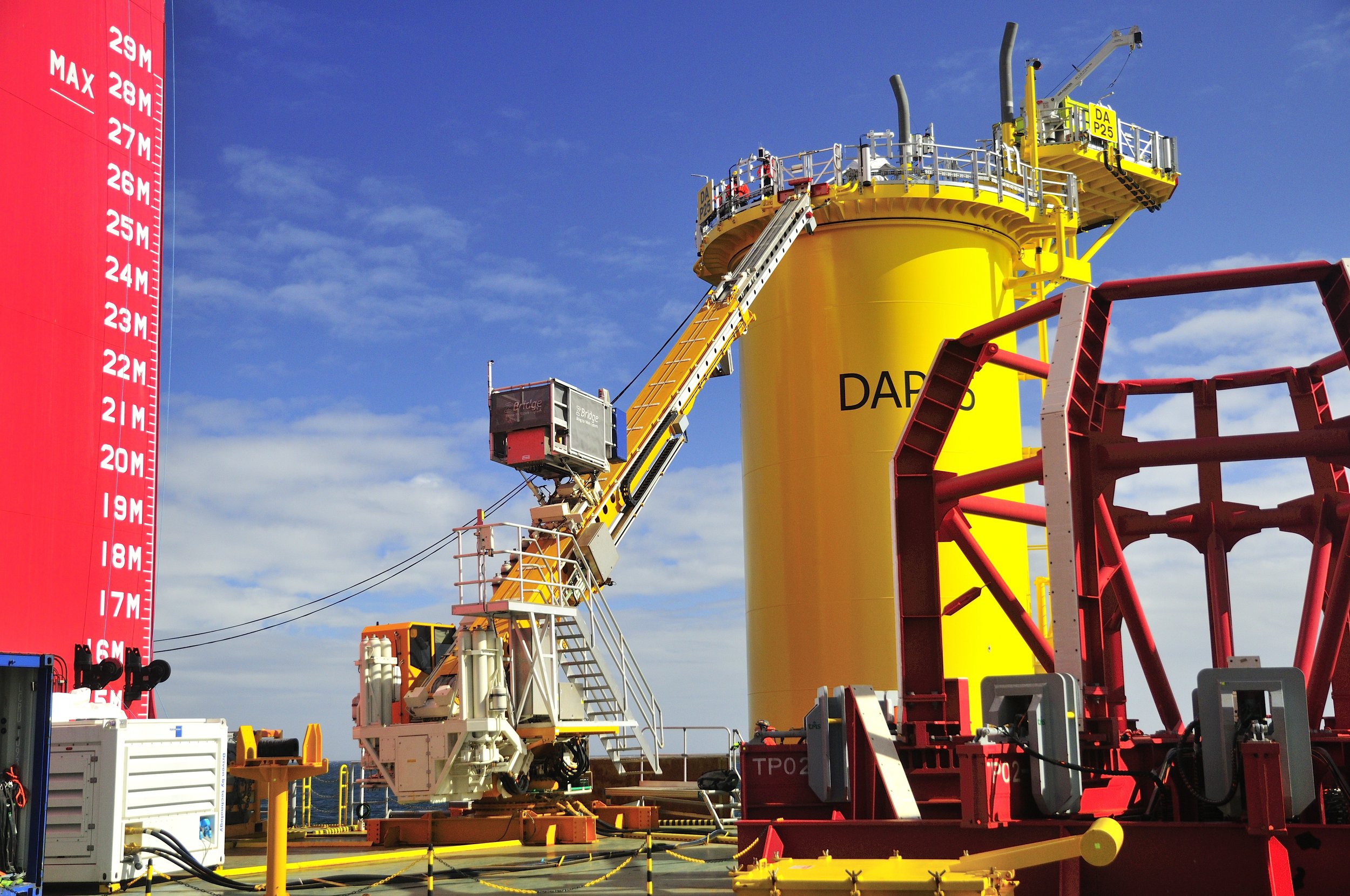

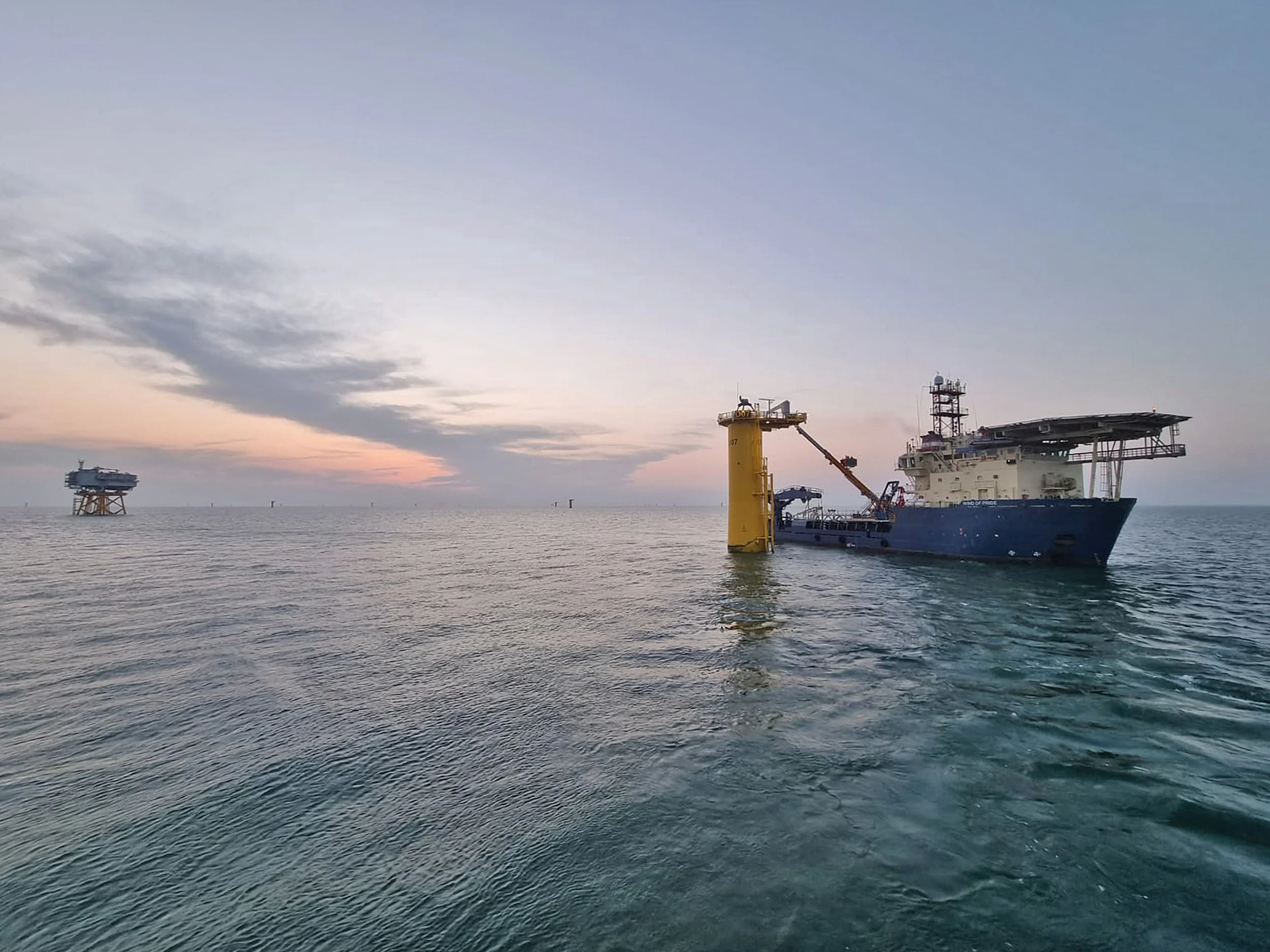

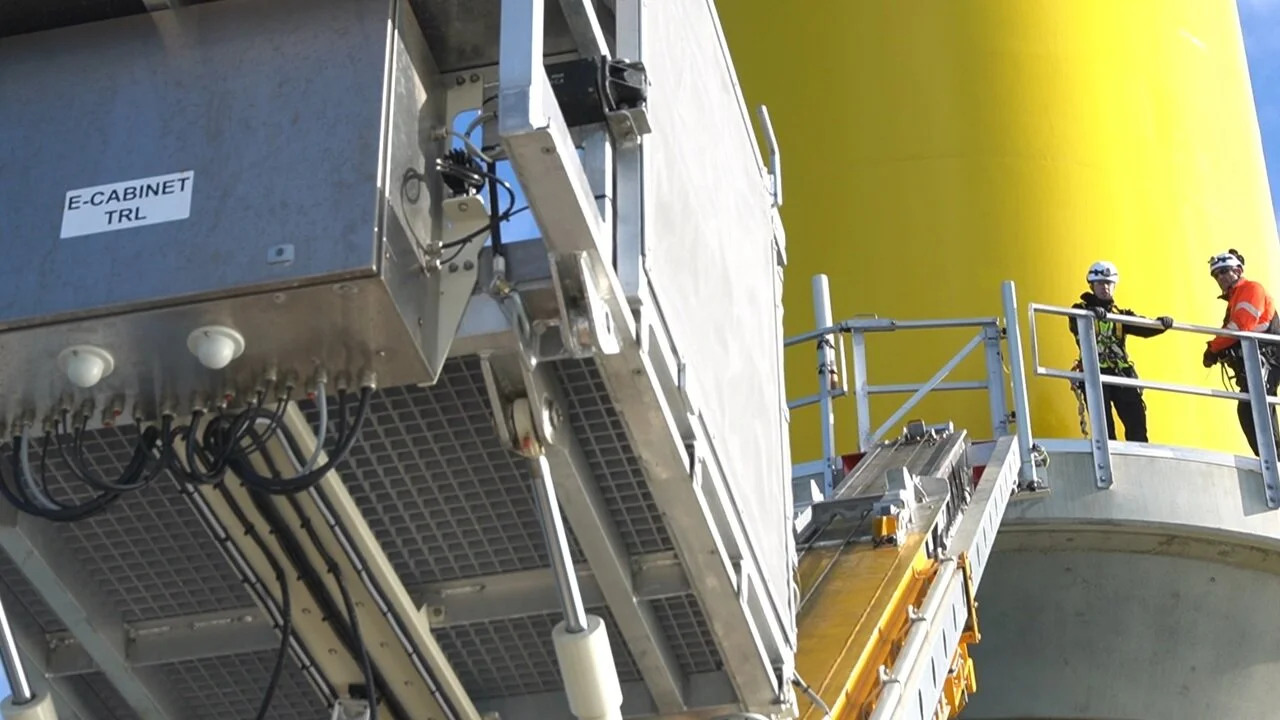

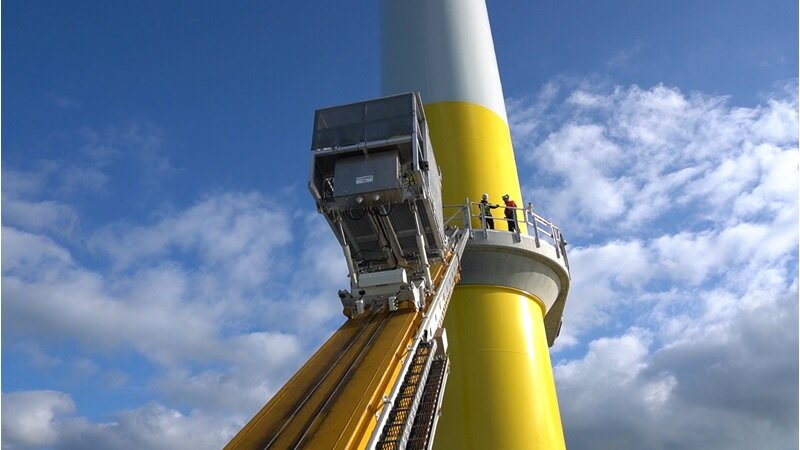

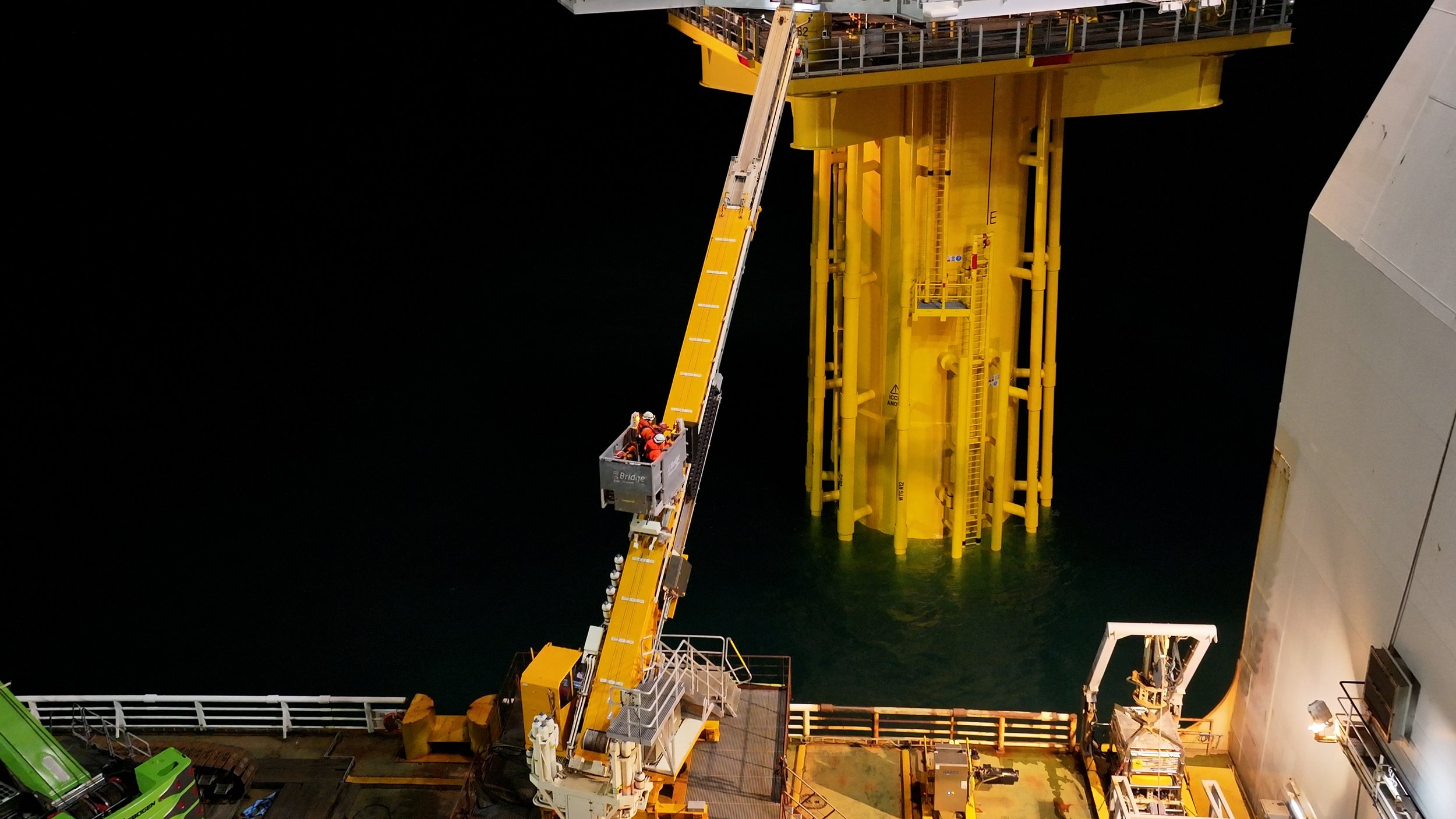

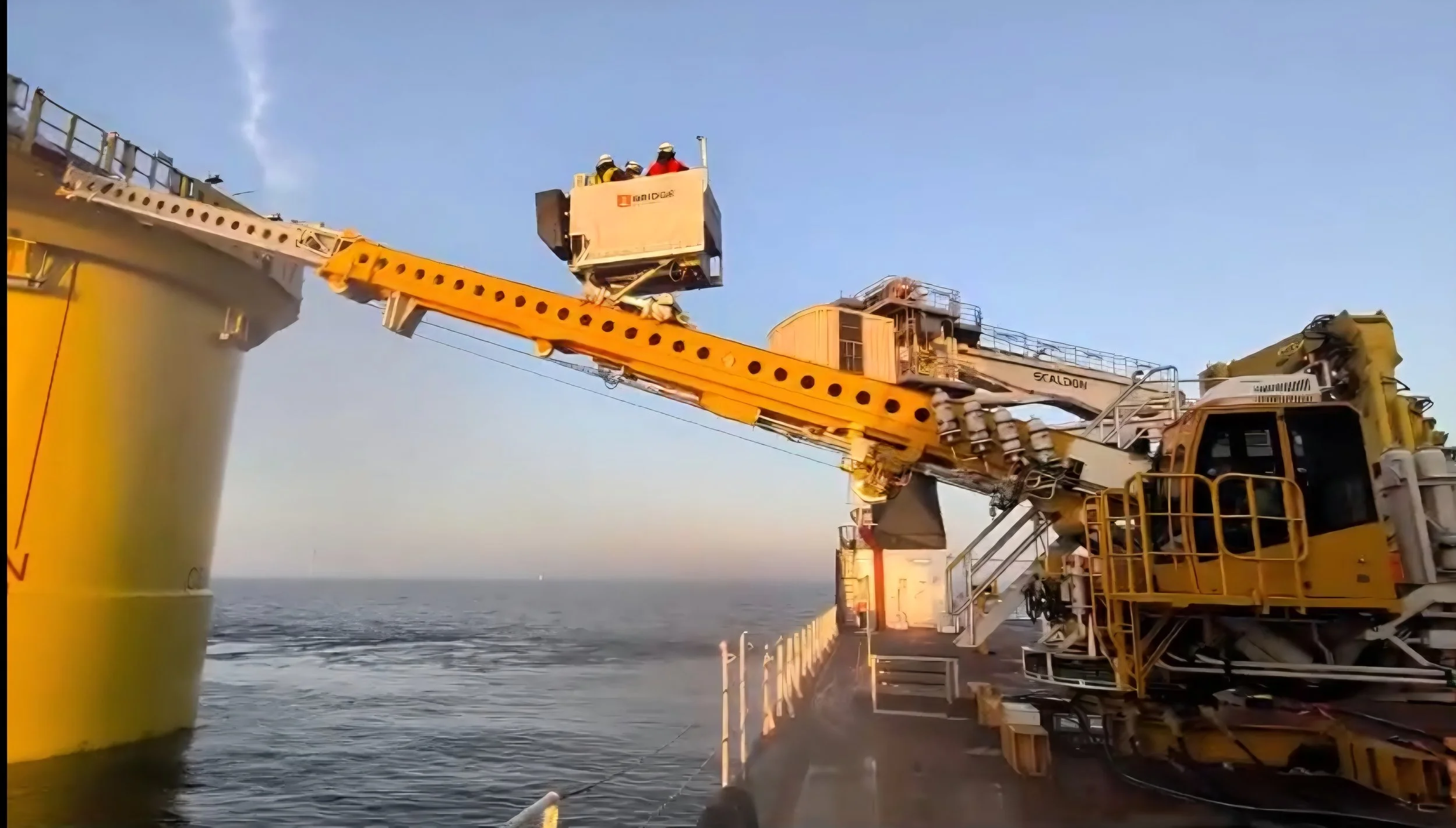

The Bring-to-Work (B2W) system is a light weight fully motion compensated offshore access system, that is designed to safely and efficient transfer personnel & cargo from the vessels deck to the Offshore structure. The system is developed with the objective to continue the improvement of safety and operational efficiency. The system can also be used as a motion compensated crane.

Key benefits

  • Two functions in one machine:
    Crew & Cargo transfer & Hoisting

  • High landing range:
    8 -21 Meter above the mounting area

  • Light weight : 27 ton

  • Small footprint

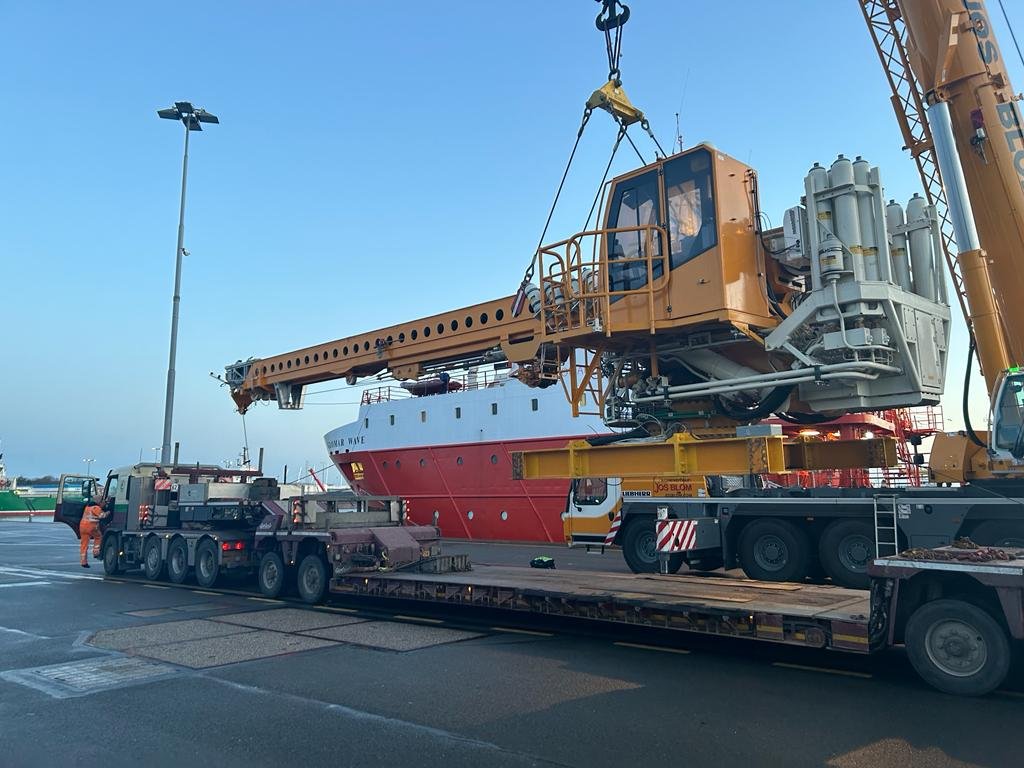

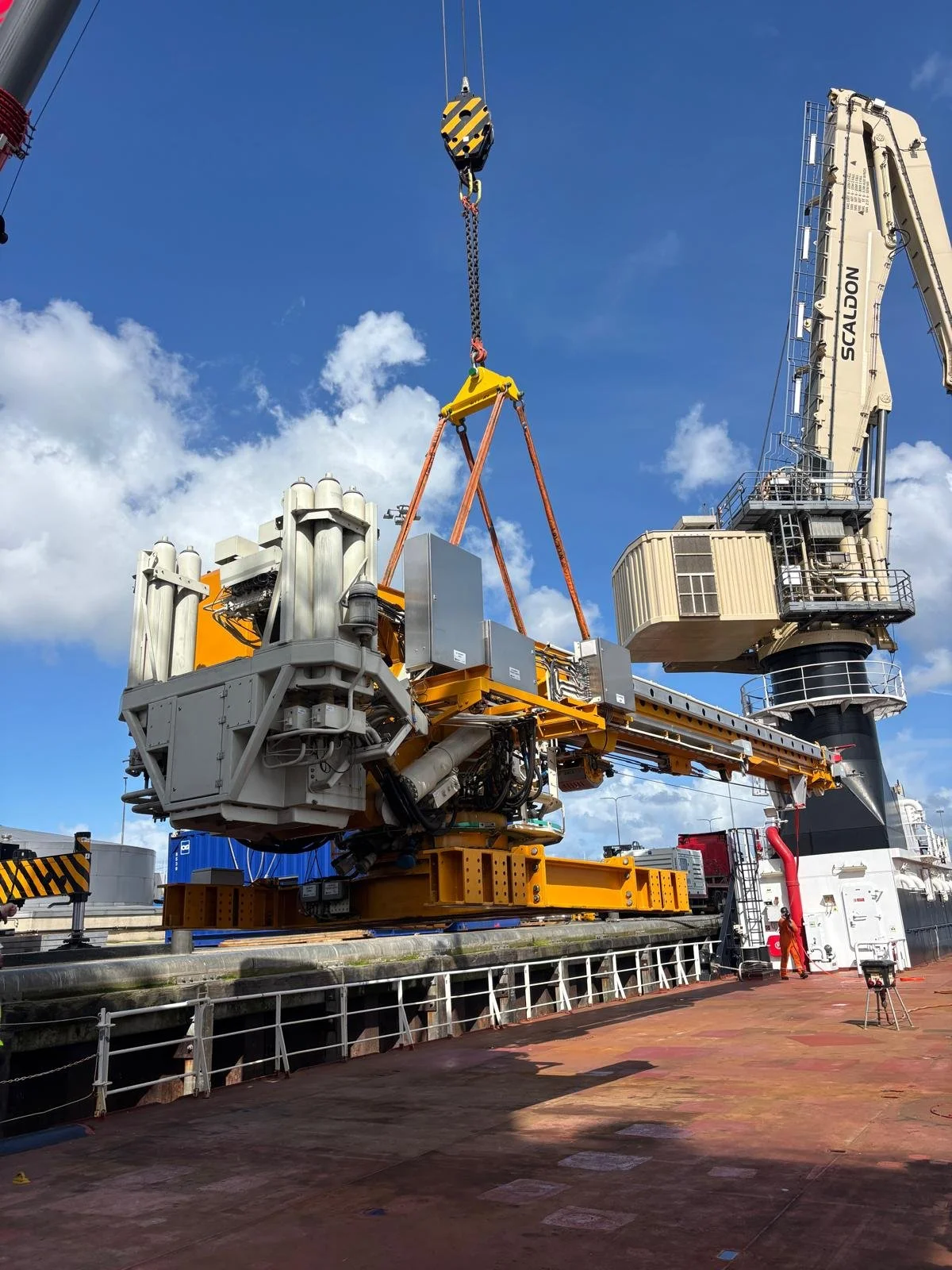

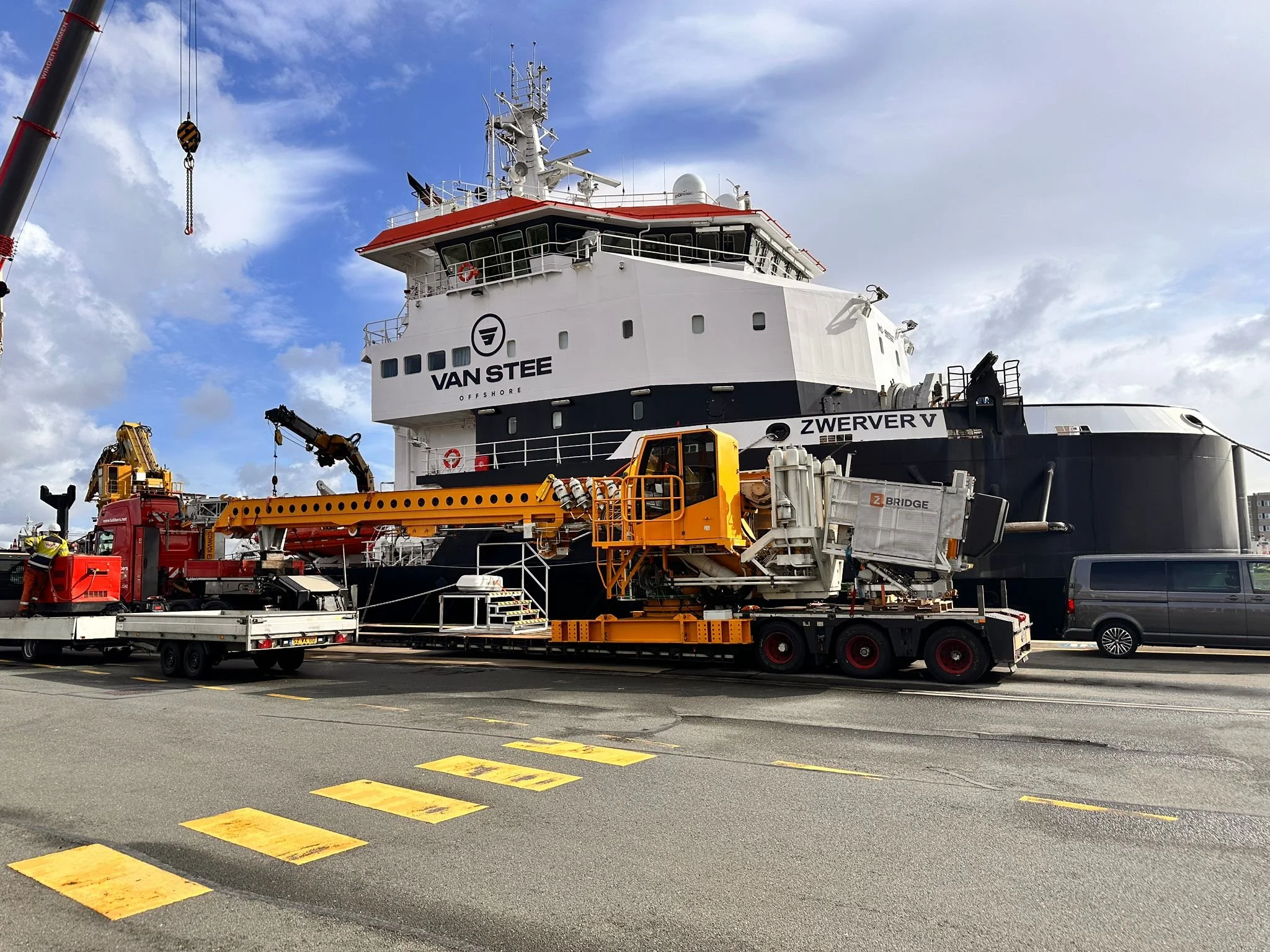

  • Easy to mobilize:
    transportable over road

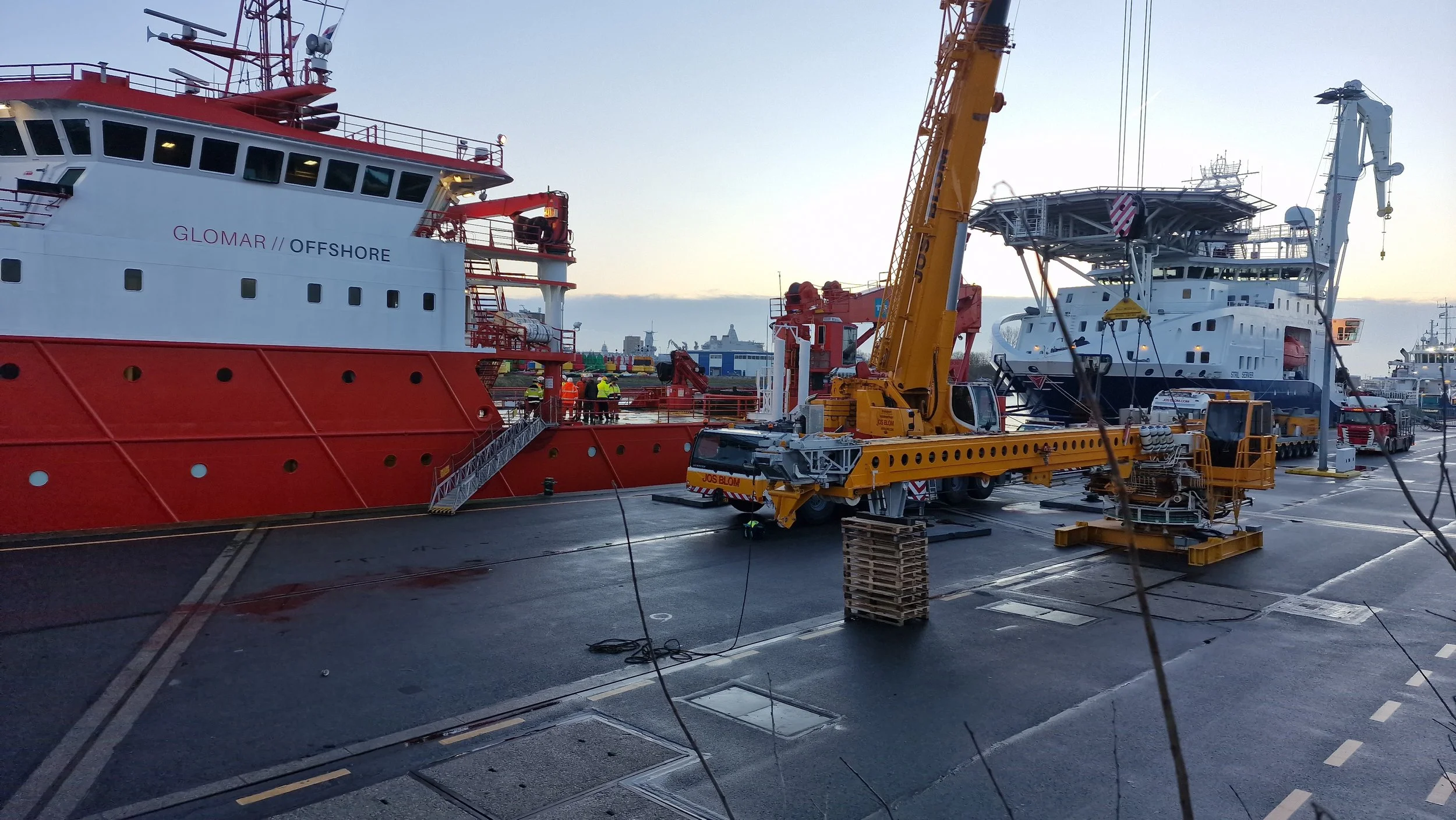

The B2W system is designed, constructed and tested in compliance with the Bureau Veritas rules for certification of Offshore Access System, this includes a full system FMEA performed under the supervision of an independent third party. The fully motion compensated systems is the lightest system available in the market able to operate from LAT +10 up to 24 meter . Weighing only 30 ton the system is suitable to operate from smaller SOV’s and can be mobilized at any port using a standard telescope crane.

Operating window

  • Windspeed : 20   m / sec

  • Wave frequency : 6 – 12   sec

  • Pitch : +/-  6  degrees

  • Roll : +/-  6  degrees

  • Landing height : + 10-24 LAT

  • Weight : 30 ton (incl. deck interface)

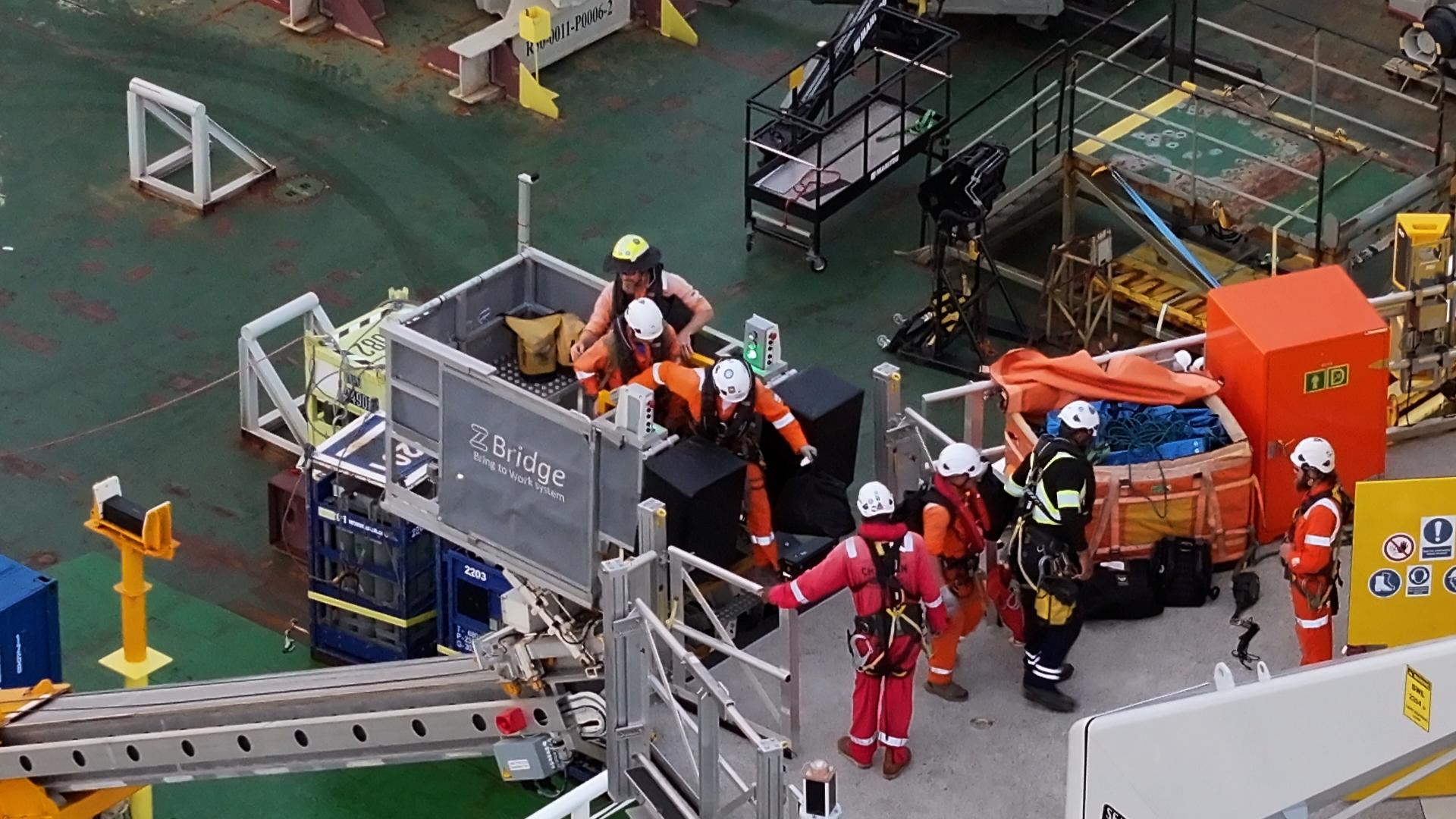

  • Transfer 6 persons per trolley run

    or 1000 kg of cargo

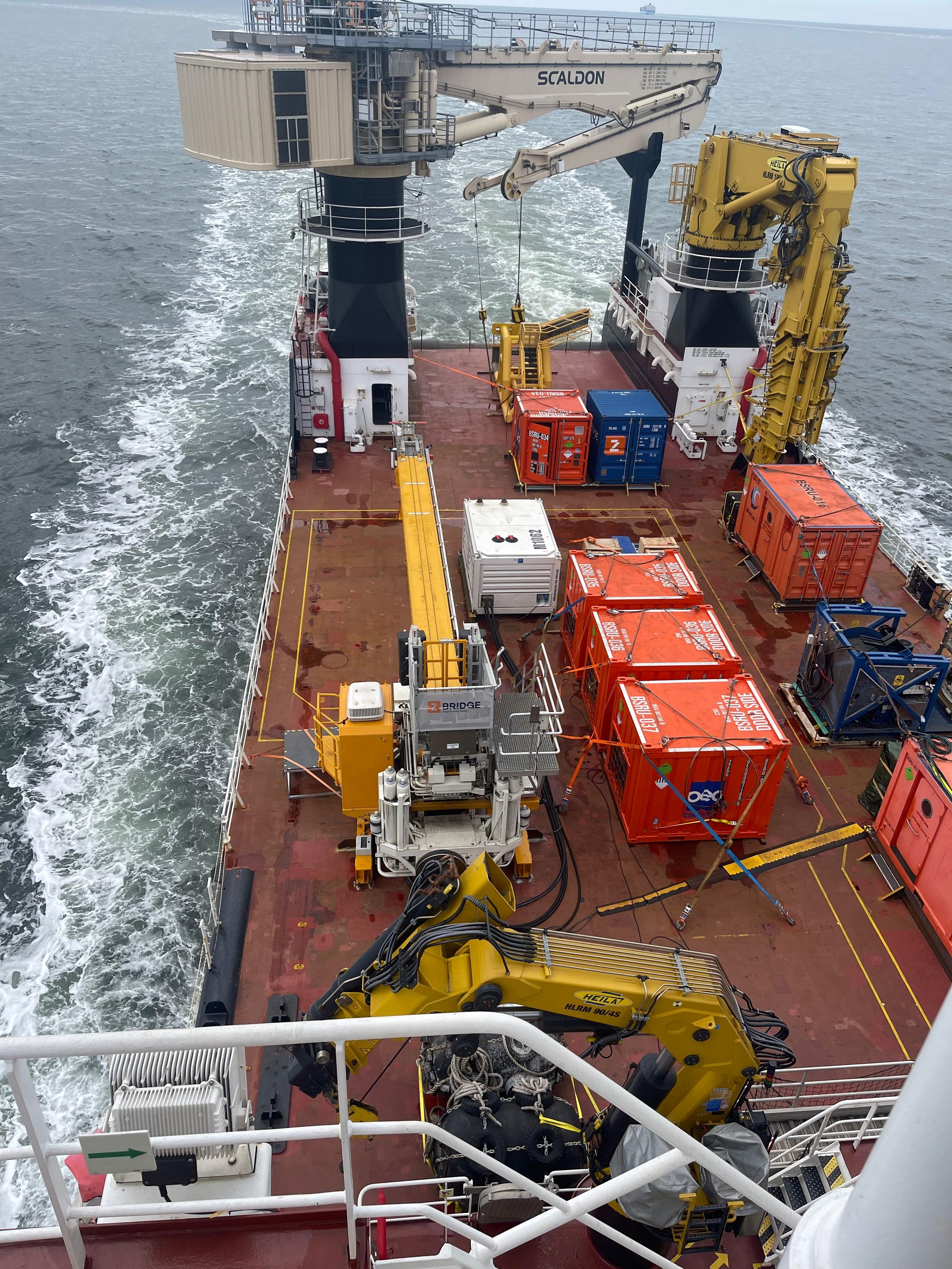

Vessel integration

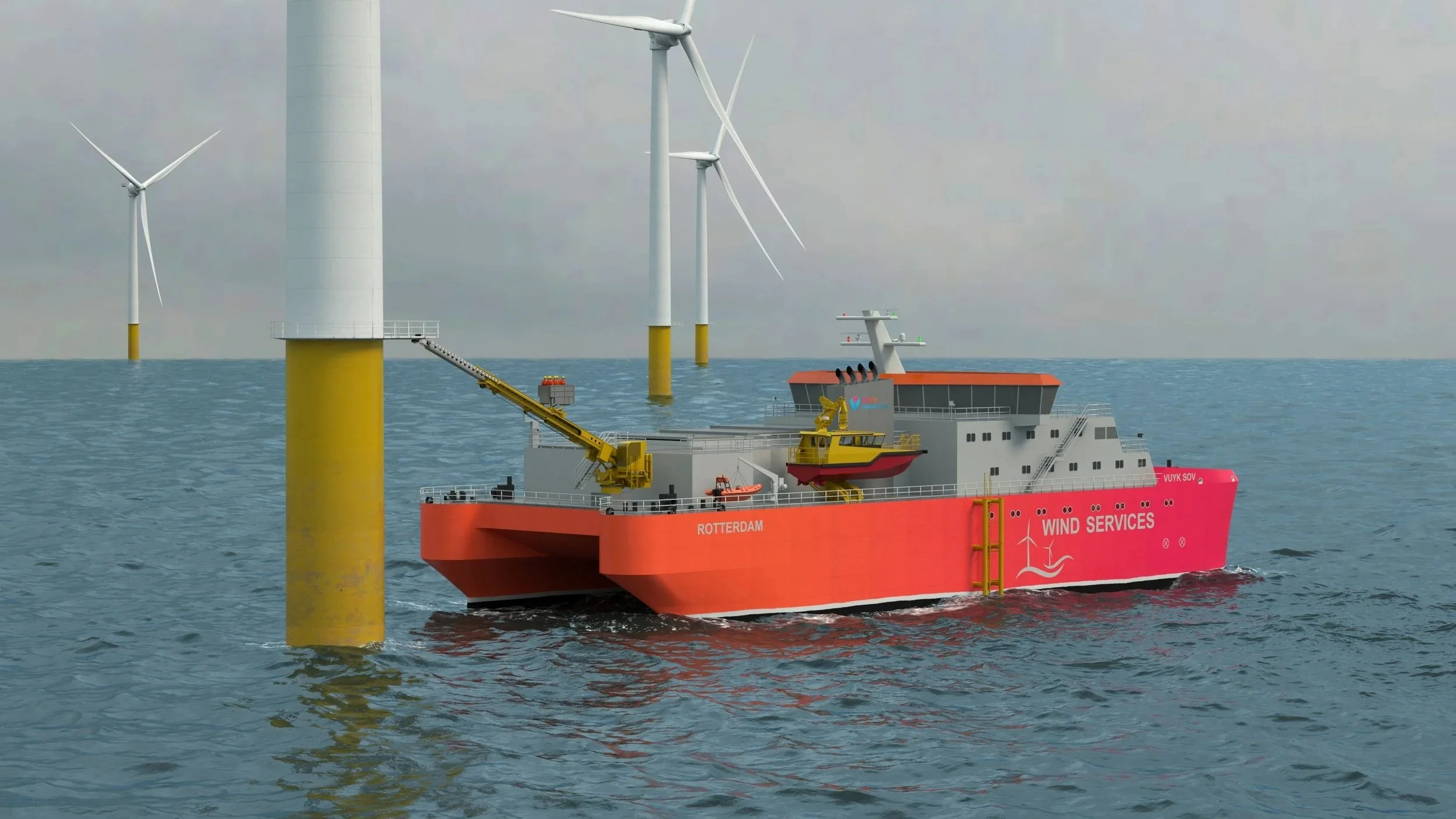

Z‑Bridge partners with leading vessel designers to integrate the Bring‑to‑Work (B2W) system across a broad range of O&M vessels. Its small footprint, low weight, and exceptional vertical reach make it the optimal solution for SWATH‑SOV’s.

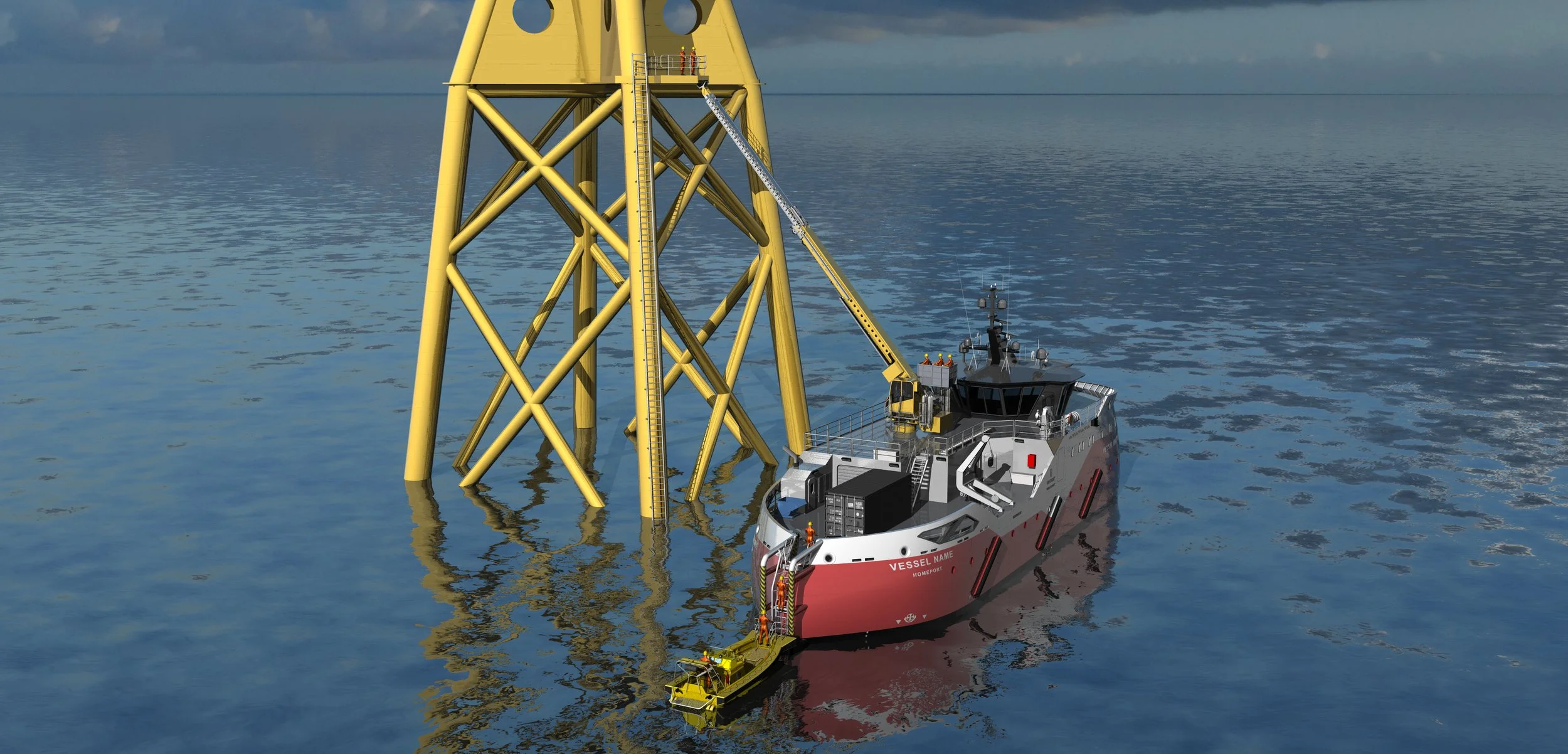

On Mini‑SOV’s, B2W is the sole transfer system that achieves full working height without heavy sub‑structures

Vuyk Swath Bring-to-Work
